TE-RSC Food Series Case Erector – Tape or Glue

A highly efficient system for high-throughput operations, handling RSC and shelf-ready cases. Configurable for tape or hot melt glue sealing, with quick size changes, continuous operation, and optional labelling or coding integration for streamlined packaging.
The automated Case Erector with bottom flap tape or hot melt glue closing is suitable for RSC0201 and Shelf Ready style cases where high throughput is required. The case extracting system smoothly removes each case from the magazine utilising a vacuum gripper. The built-in case transport system guides the open case through the folding of the bottom minor and major flaps before closing with tape or hot melt glue. With integrated open flap detection and low-level tape warning this Case Erector with bottom flap tape closing is designed for continuous operation with very little operator intervention.

Benefits

  • Easy access for line clearance, cleaning and maintenance
  • Configurable for tape or hot melt glue case erecting
  • Quick size change with no tooling required
  • Ergonomic Design within a compact footprint
  • Easy-fill horizontal case magazine
  • Safely replenish magazine while machine is running
  • Low impact flap folding for lightweight/perforated cases
  • Optional integration of labeller and/or ink jet coder

Processing and packaging solutions for your industry

Bespoke Solutions for Complex Needs

At Tekpak, we pride ourselves on developing customized packaging solutions tailored to the unique needs of each client. With over 20 years of experience, we tackle complex automation challenges that go beyond standard offerings. Whether you need a solution that doesn’t yet exist or something highly specific, we work closely with you to design, manufacture, and implement a system that ensures maximum efficiency, precision, and safety. Tekpak’s bespoke solutions give you a competitive edge in your industry.

Ireland-Based with Global Reach

Located in Wexford, Ireland, Tekpak is a trusted partner to some of the world’s largest life sciences, pharmaceutical, and medical device companies. Our 4,000m² (40,000ft²) factory includes 2,000m² (20,000ft²) dedicated to Full Line Assembly and FAT, allowing us to deliver high-quality, fully assembled solutions. We are committed to providing the best technical solutions to support the long-term success of our clients’ operations, helping them meet industry demands and maintain GMP standards.

Complete Turn-Key Line Solutions

Tekpak provides complete turn-key packaging line solutions, integrating every aspect of automation, from case erecting and product transport to case closing and palletizing. Our systems incorporate OEM equipment such as labellers, printers, and serialization systems, ensuring seamless operation from start to finish. With over 20 years of expertise, Tekpak ensures high efficiency and reliability for full-line automation in industries like food, pharmaceutical, and medical devices, delivering precision and speed with every project.

Data Sheet

Technical Information

TE-RSC Food Series Case Erector - Tape or Glue Technical information

TE-RSC Food Series Case Erector - Tape or Glue Typical 2D Layout

Operator Interface

TE-RSC Food Series Case Erector - Tape or Glue Operator information

Service Specification

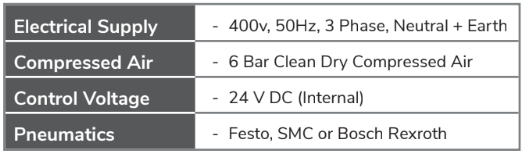

TE-RSC Food Series Case Erector - Tape or Glue Service Specifications

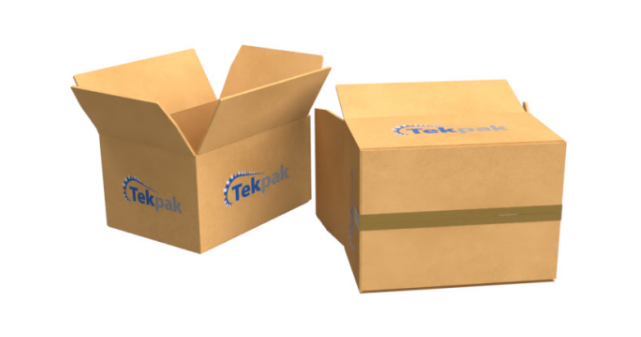

TE-RSC Food Series Case Erector - Tape or Glue Case Erecting sequence TE-RSC Food Series Case Erector - Tape or Glue Case Erected with tape bottom

Brochure: TE-RSC Food Series Case Erector - Tape or Glue

Click on the link below to download the brochure.

Frequently asked questions

What types of cases can the machine handle?
It handles RSC0201 and shelf-ready style cases, ideal for high-throughput operations.
Does the machine use tape or glue for case sealing?
It can be configured for either tape or hot melt glue sealing, depending on your needs.
Can the machine handle lightweight or perforated cases?
Yes, it features low-impact flap folding, making it suitable for lightweight and perforated cases.
How easy is it to change case sizes?
The machine allows quick size changes with no tooling required, ensuring minimal downtime. Typical format changes are done under 5 min. Also fully automatic size changes are available as an option.
Is it possible to refill the case magazine while the machine is running?
Yes, the easy-fill horizontal magazine can be safely replenished during operation.
Can the machine be integrated with labellers or inkjet coders?
Yes, labellers and inkjet coders can be optionally integrated for enhanced functionality.
